| Material: | NBR | Coior: | Black |
|---|---|---|---|
| Fit Valve: | CA45DD CA45FS CA45T RCA45DD RCA45FS RCA45T | Pressure: | 0.5-1MPA |
| Standard Temperature: | -40℃ +100℃ | Lifespan: | 1 Million Cycles |
| High Light: | Nitrile Goyen Membrane, K4502 Goyen Membrane, 1MPA Pressure Goyen Membrane | ||

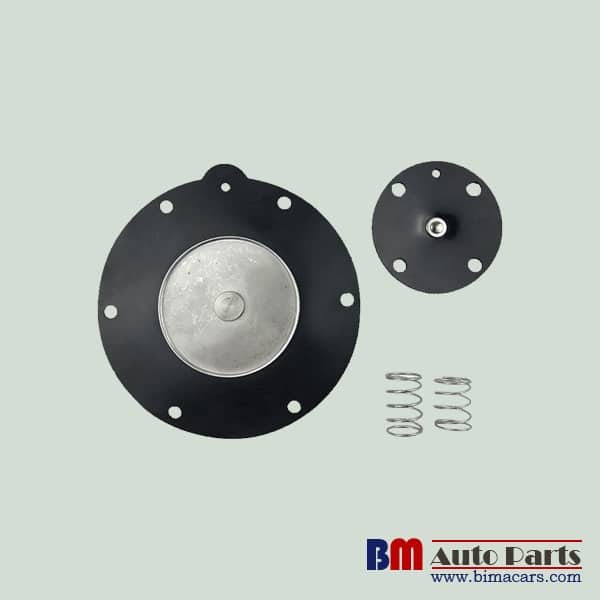

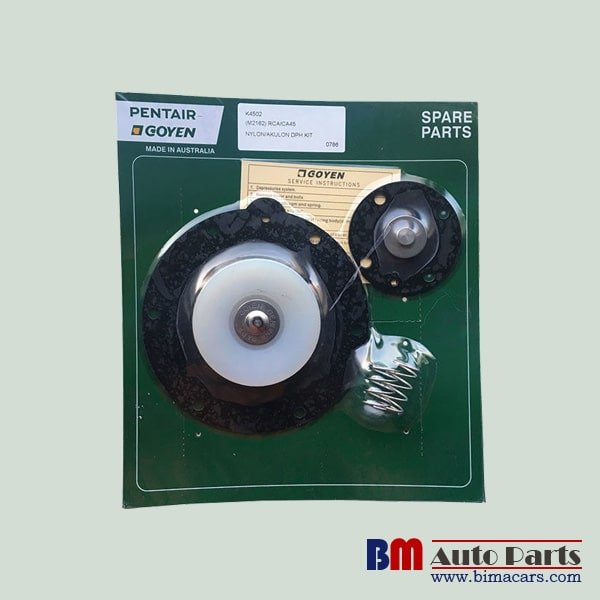

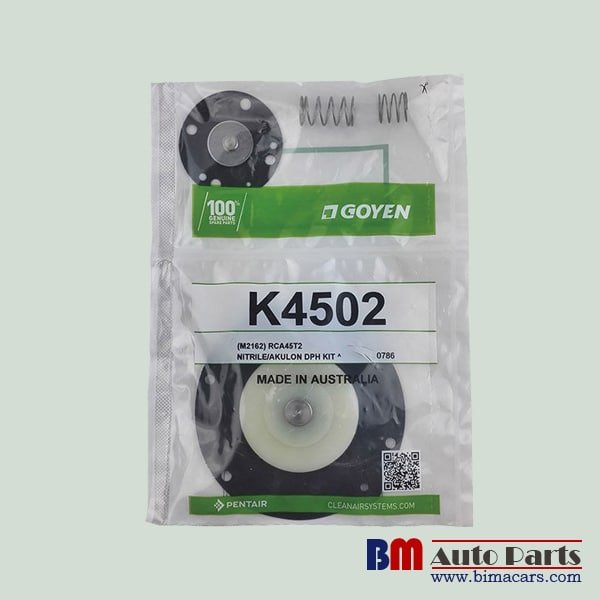

K4502 Goyen Nitrile membrane G1 CA/RCA40T 45DD 45FS pulse solenoid valve
Ordering Code: K4502(M2162) K4504(M2187) K4503(M2163)
Material: Nylon-Nitrile(NBR)/FKM Nylon
Buna / Nitrile diaphragm working temperature: -10~80°C
Description:
1. The diaphragm repair kits is for Goyen pulse jet valves R/CA45T
2. Material: NBR/Viton
3. This repair kit has large air – outlet , so the air can get throgh very smoothly.
4. We use high quality material , the collection equipment efficiency can be improved , the energy loss also can be reduced.
5. Goyen K4502 repair kit has unique geometric diaphragm design , high speed from multiple diaphragm to reach the highest peak in an instant.
6. We use high quality material , the collection equipment efficiency can be improved , the energy loss also can be reduced.
7. Its lifespan is about 1 million cycles.
| Product name | GOYEN diaphragm repair kit |
| Temperature | Medium Temperature |
| Valve size | G1-1/2 INCH |
| Install Valve Model | CA45DD/CA45FS/CA45T RCA45DD/RCA45FS/RCA45T |
| Diaphragm materia | NBR for -20~80°C; FKM for -20~200°C) |
1 . The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation.
2 . The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust collector service applications
3 . The design with integral compression fittings will facilitate installation because there is no need for threaded piping
4 . The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions
5 . Integral pilot operated valves satisfy all relevant EC directives
