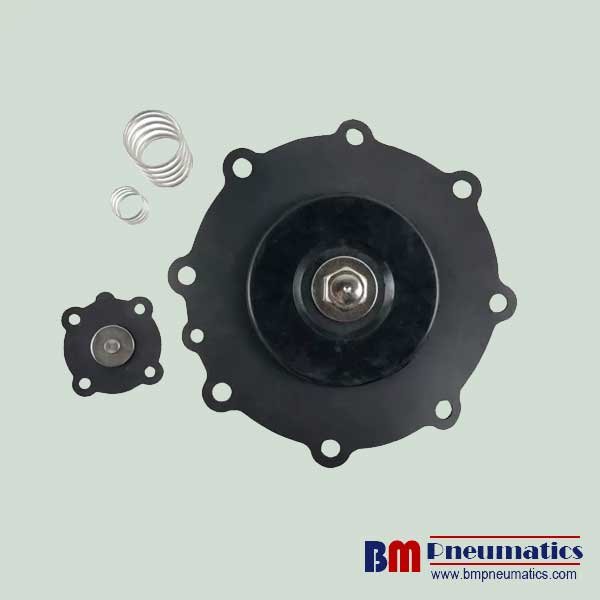

JOIL JIHI102 G4″ Diaphragm Repair Kit
Die Cast Aluminum JOIL JIHI102 G4″ Diaphragm Repair Kit, is manufactured with special nylon and synthetic rubber.
Die Cast Aluminum JOIL JIHI102 G4″ Diaphragm Repair Kit
Product Details:
| Place of Origin: | China |
| Brand Name: | JOIL |
| Certification: | ISO 9001,CE |
| Model Number: | JIHI102 Diahragm kits |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | carton |
| Delivery Time: | 1-5 working days |
| Payment Terms: | T/T in advance,Western Union,Paypal,Credit card |
| Supply Ability: | 1000 pcs/month |
Detailed Product Description
| Model: | JIHI102 Diahragm Kits | Operation: | Normally Closed |
|---|---|---|---|
| Valve Body: | Die Cast Aluminum | Diaphragm Seat: | Elastomer |
| Media: | Air Or Insert Gas | Mounting: | Manifold |
| Max.Operating Pressure: | 7.5kg F/cm³ | Outlet Pipe: | 4″ |
| High Light: | G4″ Diaphragm Repair Kit, JOIL Diaphragm Repair Kit, JIHI102 Diaphragm Repair Kit | ||
1.Specification
| Operation | Normally Closed |
| Pipe Size(Inlet) | PT 4″ |
| Pipe Size(Outlet) | PT 4″ |
| Cv Flow Factor | 142 |
| Valve Body | Die-cast Aluminum |
| Diaphragm Seat | NBR |
| Media | Air or Inert Gas |
| Fluid Temperature | 110℃ Max |
| Amblent Temperature | 100℃ Max |
| Disk Material | Elastomer |
| Pilot Air | Double |
| Mounting | Screw Type |
| Design Pressure | 7.5kg f/cm³ |
| Max. Operating Pressure | 7.5kg f/cm³ |
| Approx.Weitht | 3.82kg |
Diaphragm is manufactured with special nylon and synthetic rubber, so it is excellent even in any temperature and environment.
Diaphragm of the valve, the crucial part has a revetment between shock absorbent plate and shield plate,
so guarantee lower noise and long life by preventing clearance & buffer role.
