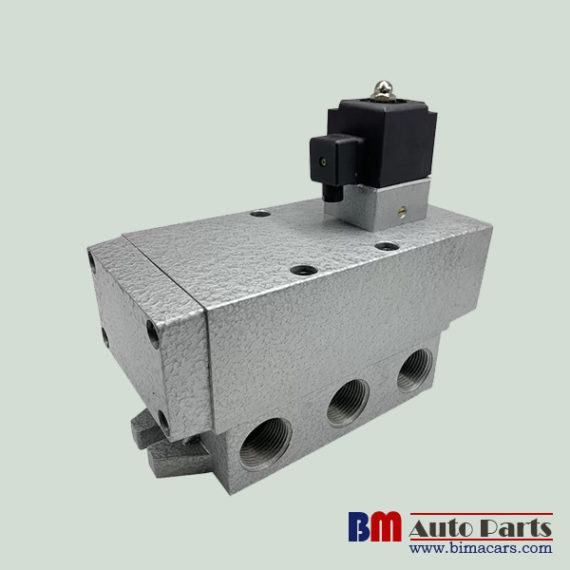

Sliding Column Reversing Valve Solenoid

1. Using direct diaphragm structure to start without pressure expands its application field.
2. The flat diaphragm structure is reliable in opening and closing, and the service life of the product is enhanced.
3. Choosing plastic-encapsulated coil can improve the safety of the product in many environments.
Model Code:K25D-25 K25DH-25DVoltage:DC12V/DC24V/DC36V/AC36V/AC110V/AC220V/AC380V
Type:2-position 5-wayPressure:0~1.0MPa
Material:AlloyPort Size:1″
High Light:K25D-25, K25DH-25D, Sliding Column Reversing Valve Solenoid
ModelK25D-25 K25DH-25D
Materialalloy
Weight1.5kgs

K25D-25 K25DH-25D 2-position 5-way 1 Inch Sliding Column Reversing Valve Solenoid Valve

Description

1. Using direct diaphragm structure to start without pressure expands its application field.

2. The flat diaphragm structure is reliable in opening and closing, and the service life of the product is enhanced.
3. Choosing plastic-encapsulated coil can improve the safety of the product in many environments.

Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company’s sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.

Samples
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it’s what you want, so you can ask for a sample from me, it will be free.

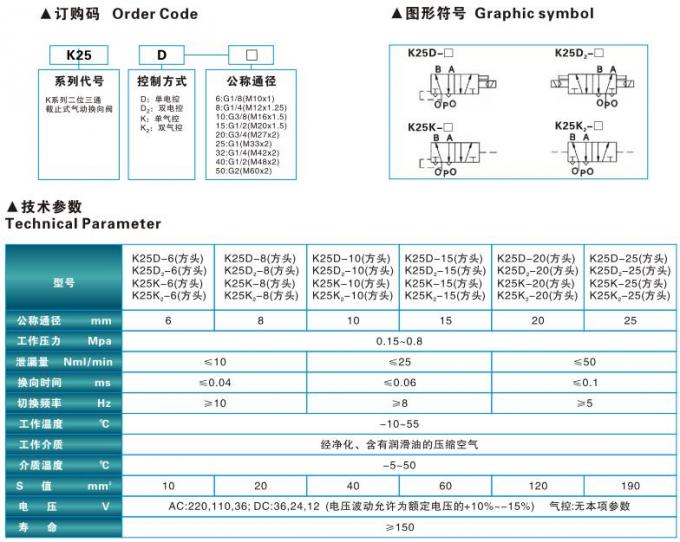

1 Inch Sliding Column Reversing Valve Solenoid-2

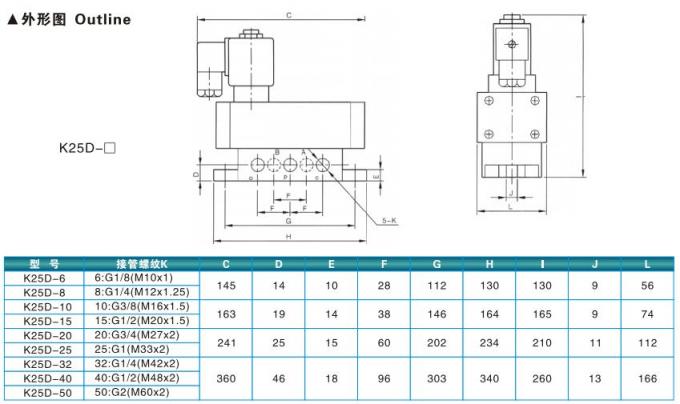

1 Inch Sliding Column Reversing Valve Solenoid
