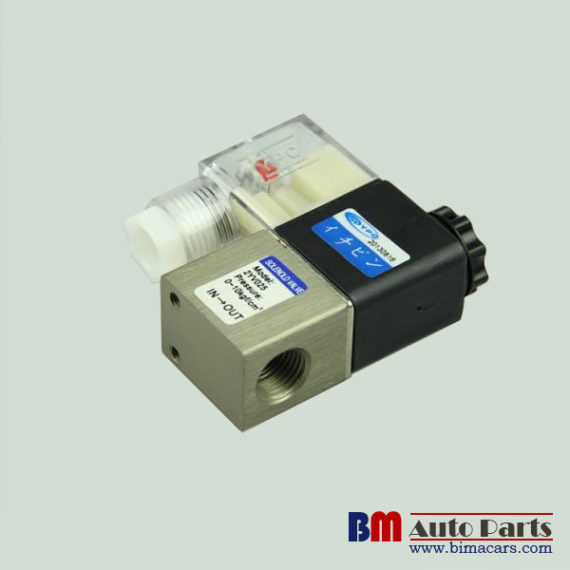

2V Pneumatic Solenoid Valve

Product Feature

1. Direct acting type and normally closed mode, flexible in direction change.

2. No need to add oil for lubrication.

3. Several valves can be installed integrately to save installation space.

4. Affiliated manual devices are equipped to facilitate installation and debugging.

5. Several standard voltage grades are optional.

Specification

Model	2YV025-06	2YV025-08
Working Medium	40 Micron Filtered Air
			Motion Pattern	Direct Drive Type
Joint Pipe Bore	G1/8	G1/4
			Aperture of flow Rate	2.5mm
Working-Pressure	0～1.0MPa
			Max Pressure Resistance	1.5MPa
Operating Temperature	–5～80℃
			Voltage Range	±10%
Power Consumption	AC: 7VA/60Hz,9VA/50Hz/DC:6W
			Insulation& Protection Class	F Class.lP65
Shortest Excitation Time	0.05Second

1.PT thread, NPT thread and G thread are available.

Coil Specification

Item	Specification
Standard voltage	AC220V,AC110V,AC24V,DC24V,DC12V
Scope of voltage	AC+-15%,DC+-10%
Power consumption	AC:3.5VA; DC:3.0W
Protection	IP65
Temperature classification	B class
Electrical entry	Terminal,Grommet
Activating time	0.05sec and below

2 way pneumatic solenoid valve
