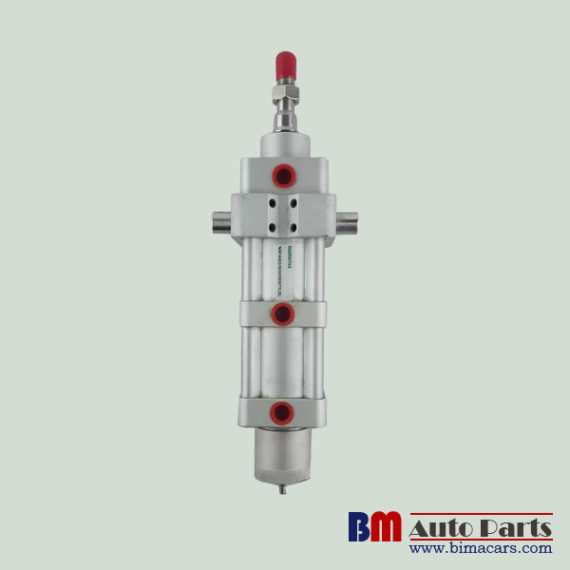

3 Position Pneumatic Air Cylinders Alumium Alloy Material For Cement Bagging Machine
Detailed Product Description
| Model Code: | NNFA063/0030/0030TC(S) | Type: | 3 Position |
|---|---|---|---|
| Working Medium: | Compressed Air | Application: | Cement Bagging Machine |
| Material: | Alumium Alloy | Temperature: | -10℃ To 60℃ |
| High Light: | pneumatic actuator cylinder, smc pneumatic cylinder | ||
Pneumatic NNFA For Cement Bagging Machine NNFA063/0030/0030TC(S) Special 3 Position Cylinder
Technical Information
Special 3-position cylinder with adjustable stroke for flling control application.
With/without Trunnion mounting and customized rod end for direct adaptation.
High strength steel piston rod has a ground, polished and hard chrome plated surface providing maximum life of brushing and seals
Barrel made from anodized aluminum with wear resisting coating.
-10C to +60C ambient temperature
1 to 10 bar operation pressure
Gasket made from NBR and Polyurethane.
Filtered air with or without lubrication.
Galvanized bolts
Model | NNFA 063/0030/0030TC(S) |
Fluid temperature | -10℃ to 60℃ |
Material | Alumium Alloy |
Fluid | Air |
Type | 3-position |
| temperature | -10C to +60C |
| standard | yes |
