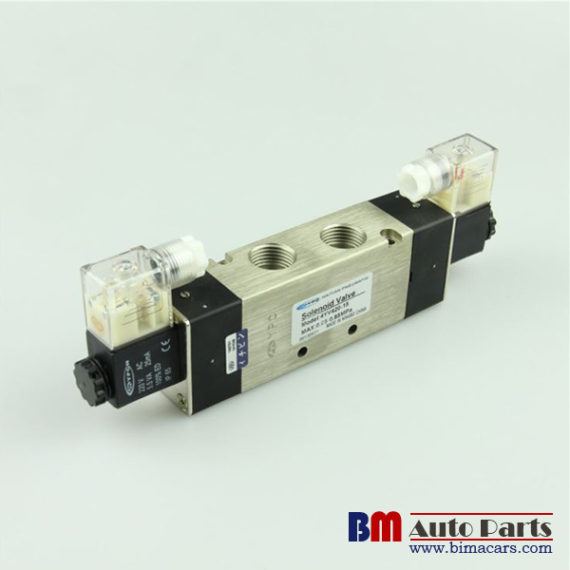

Product Feature
1. Pilot-oriented mode: Internal pilot or external pilot.
2. Structure is sliding column mode: good tightness and sensitive reaction.
3. Three position solenoid valves have three kinds of central function for your choice.
4. Double control solenoid valves have memory function.
5. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
6. No need to add oil for lubrication.
7. It is available to form integrated valve group with the base to save installation space.
8. Affiliated manual devices are equipped to facilitate installation and debugging.
9. Several standard voltage grades are optional.
| Model | 4YV410-15 | 4YV420-15 | 4YV430C-15 | |
| 4YV410H-15 | 4YV430CH-08 | 4YV430CH-15 | ||
| Position Number | Two-position Five-way | Three-position Five-way | ||
| Efective Sectional Area | 50mm²(cV=2.79) | 30mm²(cV=1.68) | ||
| Joint Pipe Bore | G1/2″/ Air Inlet= Air Outlet= Exhaust==G1/2″ | |||
| Working Medium | 40 Micron Filtered Air | |||
| Motion Pattern | Nner Guide Type | |||
| Working-Pressure | 0.15～0.8MPa | |||
| Max Pressure Resistance | 1.2MPa | |||
| Operating Temperature | –5～60℃ | |||
| Voltage Range | ±10% | |||
| Power Consumption | AC: 5.5VA DC: 4.8W | |||
| Insulation& Protection Class | F Class.IP65 | |||
| Wiring Form | Lead Wire or Connector type | |||
| Highest Action Frequency | 20 Cycle/sec | |||
| Shortest Excitation Time | 0.05Second | |||
1. PT thread, NPT thread and G thread are available.
2. Once lubricated air is used, continue with same medium to optimise valve life span. Lubricants like ISO VG32 or equivalent are recommended.
3. The maximum actuation frequency is in the no-load state.
Coil Specification
| Item | Specification |
| Standard voltage | AC220V,AC110V,AC24V,DC24V,DC12V |
| Scope of voltage | AC+-15%,DC+-10% |
| Power consumption | AC:3.5VA; DC:3.0W |
| Protection | IP65 |
| Temperature classification | B class |
| Electrical entry | Terminal,Grommet |
| Activating time | 0.05sec and below |
