Q22HD series Air cylinder brass valves in pneumatic two position two way Air Control Valve for air, water, oil, liquefied gas, low viscosity fluid.
Pneumatic piston valves fo neutral liquid and gaseus media, sigle and double acting optional.
Widely used in food area and medicine area, industrial area, washing area and painting area and car-making area.
The valves are divided as Cut-off solenoid valve, Gate-type solenoid valve and Adjustable double position solenoid valve

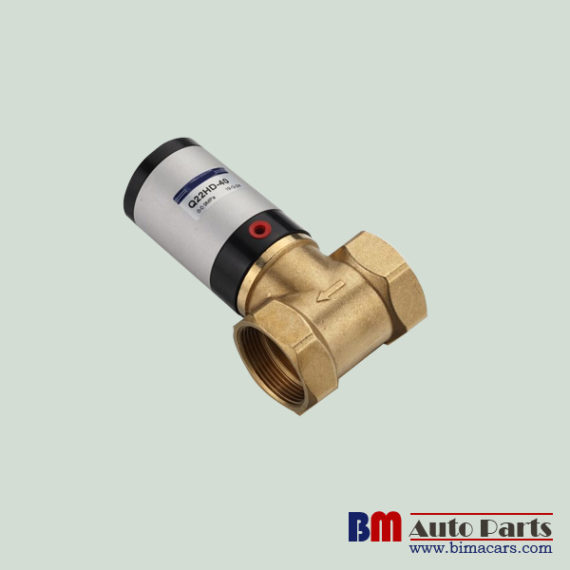

Q22HD Pneumatic Piston Valve
Quick Overview:
Describe: brass body, pneumatic operated. Air, water, steam, gas.
Port Size: 3/8~2”
Product Feature
1. Control water valve with timer
2. Electric water shut off valve
3. Water stop valve
4. Direct drive type
Specification
| Model | Q22HD-15 | Q22HD-20 | Q22HD-25 | Q22HD-35 | Q22HD-40 | Q22HD-50 |
| Nominal diameter | 15 | 20 | 25 | 35 | 40 | 50 |
| Flow coefficient Kv Value(m3/h) | 4 | 5 | 10 | 25 | 25 | 40 |
| Port connection | G1/2″ | G3/4″ | G1″ | G1/4″ | G1/2″ | G2″ |
| Working Medium | Air, water,Oil,liquefied gas, light viscosity liquid | |||||
| Working Pressure | 0.2-0.6Mpa | |||||
| Medium Temperature | -5~60° , -5~150°(For high Temp.) | |||||
AIR CONTROLS 2 WAY WATER VALVE /AIR PILOT PNEUMATIC VALVE
Model Q22DH
The valve actuation pressure is low, turn off the high sensitivity, good sealing performance, import and export any direction. Category single and double acting sealing material is optional. Now widely used in food, medicine, industry, washing, petrochemical, metallurgy, painting, vehicle and other mechanical equipment.
