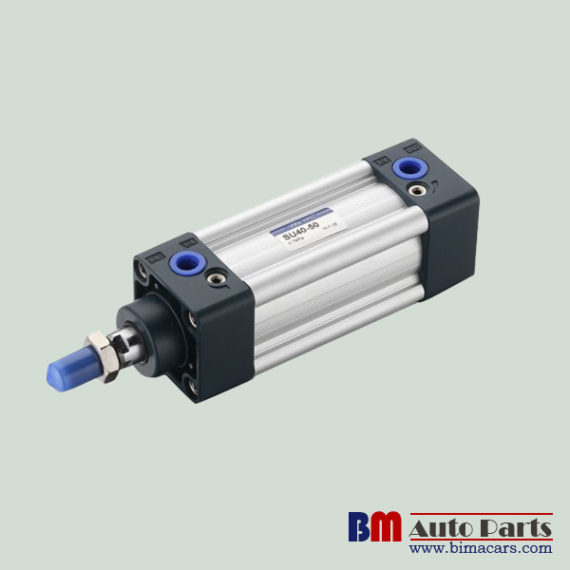

Air Standard Cylinder AIRTAC Type

SU pneumatic standard cylinder is double acting same with Airtac type standard cylinders, with adjustable cushion at both sides. It has internal support rod and the diameter of bore is: 32mm, 40 mm, 50mm, 63mm, 80mm, and 100mm.

Product feature for SU Air Standard Cylinder AIRTAC type:

1. Standard cylinder manufactured by our enterprise.

2. The seal of piston adopts heterogeneous two way seal structure. It’s dimension is tight and it has the function of oil reservation.

3. It is no tie rod cylinder. The cylinder barrel is “Mickey Mouse” shape, and have good corrosion.

4. Compared with ISO15552 standard cylinder, SU series cylinder with the same bore size is shorter.

5. The buffer adjustment of cylinder is smooth and steady.

6. Mounting accessories are the same as SC series.

7. The seal material with high temperature resistance is adopted to guarantee the normal operation of cylinder at 150℃.

Bore size(mm)		32	40	50	63	80	100
Acting type		Double acting
Fluid		Air(to be filtered by 40 um filter element)
Mounting type	SU	Basic FA FB CA CB LB TC TCM1
	SUD, SUJ	Basic FA LB TC TCM1
Operating pressure		0.1~1.0MPa(15~145psi)(1.0~10.0bar)
Proof pressure		1.5MPa(215psi)(15bar)
Temperature ℃		-20~80
Speed range mm/s		30~800
Stroke tolerance		0~250 +1.0/0 251~1000 +1.4/0 1001~1500 +1.8/0
Cushion type		Variable cushion
Adjustable cushion stroke mm		21				28	29
Port size		1/8″	1/4″		3/8″		1/2

Bore size (mm)	Standard stroke(mm)	Max. std stroke	Max. stroke
32	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500	1000	1800
40	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800	1200	1800
50	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1200	1800
63	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800
80	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800
100	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800
