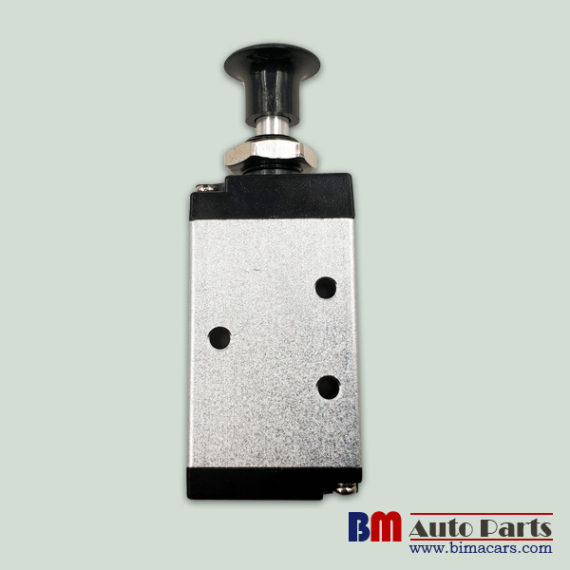

4R Series Hand Draw Valve 4R210-08 Single head Double Position manual control valve
Detailed Product Description
| Model Code: | 4R210-08 | Color: | Silvery |
|---|---|---|---|
| Body Material: | Aluminum | Name: | Hand Draw Valve |
| High Light: | foot pedal valve, pneumatic mechanical valve | ||
Ordering code
| 4R | 1 | 10 | – | 6 |
| 4R: 5/2 way hand draw valve 3R: 3/2 way hand draw valve | 1: 100 Series 2: 200 Series 3: 300 Series | 10: Single head Double Position | Port size 06: G1/8″ 08: G1/4″ 10: G3/8″ |
Specification
| Model | 4R110-06 | 4R210-06 | 4R210-08 | 3R210-06 | 3R110-08 | 4R310-08 | 4R310-10 | 3R310-08 | 3R310-10 |
| Working Medium | 40 Micron Filtered Air | ||||||||
| Port size | Inlet = Outlet = Exhaust Port = G1/8″ | Inlet, Outlet = G1/4″ Exhaust Port = G1/8 “ | Inlet = Outlet = Exhaust Port = G1/8″ | Inlet = Outlet = Exhaust Port = G1/4″ | Inlet = Outlet = Exhaust Port = G1/4″ | Inlet, Outlet = G3/8″ Exhaust Port = G1/4 “ | Inlet = Outlet = Exhaust Port = G1/4″ | Inlet = Outlet = Exhaust Port = G3/8″ | |
| Effective Cross Section Area | 10 mm²(CV=0.56) | 14 mm²(CV=0.78) | 16 mm²(CV=0.89) | 14 mm²(CV=0.78) | 16 mm²(CV=0.89) | 25 mm²(CV=1.40) | 30 mm²(CV=1.68) | 25 mm²(CV=1.40) | 30 mm²(CV=1.68) |
| Working pressure | 0～0.8MPa | ||||||||
| Working temperature | 0～60℃ | ||||||||
| Position number | 5/2 way | ||||||||
