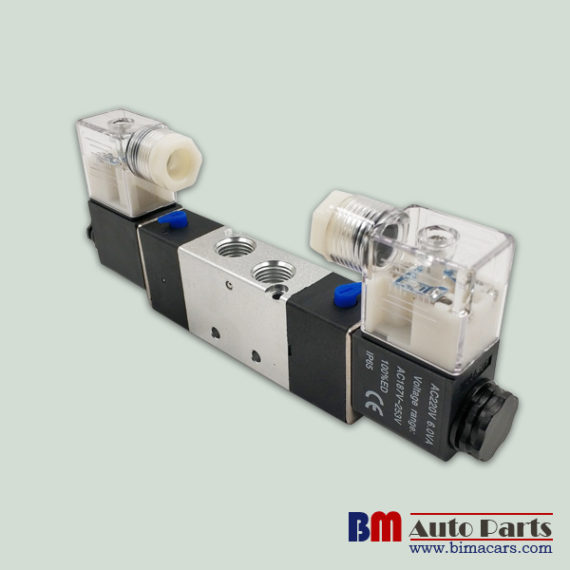

Airtac 4V220-08 Pneumatic Solenoid Valves

0.15~0.8MPa 5/2 and 5/3 Way Inner Guide Type Airtac Pneumatic Solenoid Valves 4V220-08.

0.15~0.8MPa 5/2 and 5/3 Way Inner Guide Type Airtac Pneumatic Solenoid Valves 4V220-08

Detailed Product Description
High Light:pulse solenoid valve, pneumatic diaphragm valves

1.ISO9001:2000, CE marked,
2.Ordering Code: 4V220-08,
3.Port size: 1/8″
4.high quality, good price

5.Detailed description

Model4V210-064V220-064V230C/E/P-064V210-084V220-084V230C/E/P-08
Valve type2 position 5 way3 position 5 way2 position 5 way3 position 5 way
Effective Sectional Area14mm2(CV=0.78)12mm2(CV=0.67)16mm2(CV=0.89)12mm2(CV=0.67)
Port SizeIn=Out=Exhaust=G1/8″In=Out=G1/4″ Exhaust=G1/8″
Working MediumAir(to be filtered by 40μ filter element)
Motion PatternInner guide type
Working pressure0.15~0.8MPa
Max. Test Pressure1.2MPa
Max. Ambient Temperature5~50oC
Operating Voltage Tolerance-10%~+10%
Power ConsumptionAC:5.5VA   DC:4.8W
InsulationF Class
ProtectionIP65
Wiring/ConnectorLead wire or Connector type
Switching Frequency5 cycle/sec
Response Time0.05 sec
