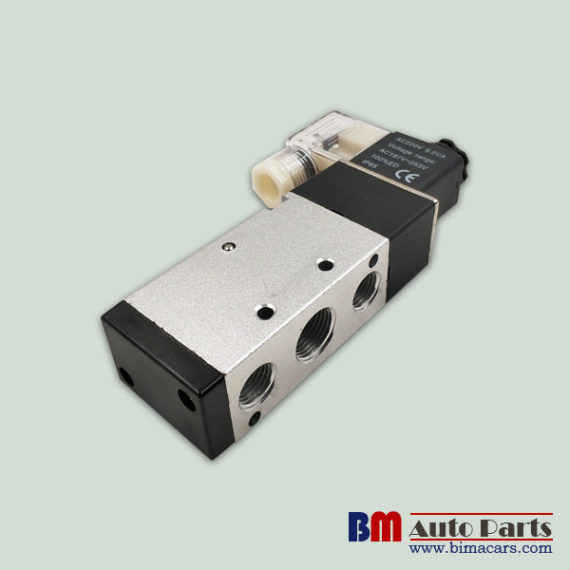

DC24V 4V310-10 5/2way 0.15-0.8MPa Solenoid valve Pneumatic Solenoid Valves
Detailed Product Description
| Operating Pressure: | 0.15-0.8MPa(21-114psi) | Media:: | Gas |
|---|---|---|---|
| Postion:: | 5 Port 2 Position | ||
| High Light: | pneumatic operated valves, pulse solenoid valve | ||
Secification:
| Model No: | 4V310-08 4V310-10 |
| Place of Origin: | Zhejiang,China (Mainland) |
| Power: | Pneumatic |
| Standard or Nonstandard: | Standard |
| Pressure: | Low Pressure |
| Structure: | Pilot |
| Material: | Alloy |
| Temperature of Media: | Normal Temperature |
| Media: | Gas |
| Brand Name: | Airtac SMC ASCO |
| Valve type: | 5 port 2 position |
| Lubrication: | Not required |
| Temperature °C: | -20~70 |
| Orifice size: | 30.0mm2 |
| Material of body: | Aluminum alloy |
| Fluid: | Air |
Specification:
| Model | 4V310-08 4V320-08 | 4V330C-08 4V330E-08 4V330P-08 | 4V310-10 4V320-10 | 4V330C-10 4V330E-10 4V330P-10 |
| Fluid | Air(to be filtered by 40pm fillter element) | |||
| Acting | Piloted | |||
| Port size | ln=Out=Exhaust=1/4″ | ln=Out=3/8″ Exhaust=1/4″ | ||
| Orifice size | 25.0mm2 (Cv=1.40) | 18.0mm2 (Cv=1.00) | 30.0mm2 (Cv=1.68) | 18.0mm2 (Cv=1.00) |
| Valve type | 5 port 3 position | 5 port 2 position | 5 port 3 position | 5 port 2 position |
| Operating pressure | 0.15-0.8MPa(21-114psi) | |||
| Proof pressure | 1.5MPa(215psi) | |||
| Temperature °C | -20-70 | |||
| Material of body | Aluminum alloy | |||
| Lubrication | Not required | |||
| Max.frequency | 4 cycle/sec | 3 cycle/sec | 4 cycle/sec | 3 cycle/sec |
| Weight | 4V310-08:310g 4V320-08:400g | 450g | 4V310-10:310g 4V320-10:400g | 450g |
