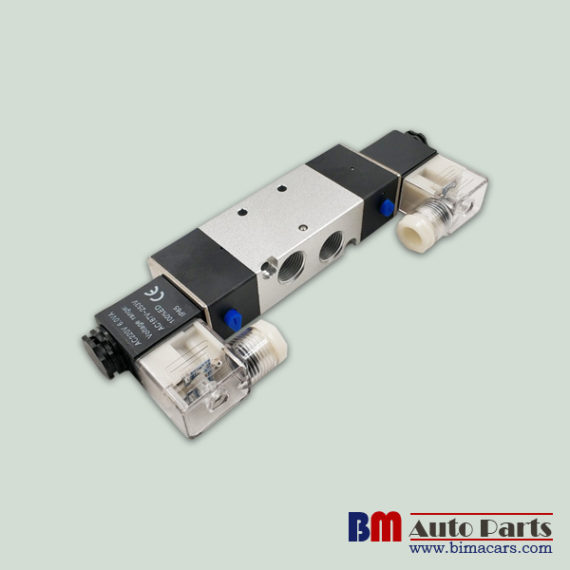

AIRTAC Double Coil 3/8″ Aluminum alloy 4V320-10 5/2 way Pneumatic Solenoid Valves
Detailed Product Description
| Model Code: | Airtac 4V320-10 | Port Size: | 3/8″ |
|---|---|---|---|
| Brand: | Airtac | Original: | CHINA |
| Voltage: | DC24V AC220V | Valve Type: | 5/2 Way |
| High Light: | pulse solenoid valve, pneumatic diaphragm valves | ||
Model No: 4V320-08 4V320-10
Place of Origin: Zhejiang,China (Mainland)
Power: Pneumatic
Standard or Nonstandard: Standard
Pressure: Low Pressure
Structure: Pilot
Material: Alloy
Temperature of Media: Normal Temperature
Media: Gas
Brand Name: Airtac SMC ASCO
Valve type: 5 port 2 position
Lubrication: Not required
Temperature : -20~70°C
Orifice size: 30.0mm2
Material of body: Aluminum alloy
Fluid: Air
Specification:
| Model | 4V310-08 4V320-08 | 4V330C-08 4V330E-08 4V330P-08 | 4V310-10 4V320-10 | 4V330C-10 4V330E-10 4V330P-10 |
| Fluid | Air(to be filtered by 40pm fillter element) | |||
| Acting | Piloted | |||
| Port size | ln=Out=Exhaust=1/4″ | ln=Out=3/8″ Exhaust=1/4″ | ||
| Orifice size | 25.0mm2 (Cv=1.40) | 18.0mm2 (Cv=1.00) | 30.0mm2 (Cv=1.68) | 18.0mm2 (Cv=1.00) |
| Valve type | 5 port 3 position | 5 port 2 position | 5 port 3 position | 5 port 2 position |
| Operating pressure | 0.15-0.8MPa(21-114psi) | |||
| Proof pressure | 1.5MPa(215psi) | |||
| Temperature °C | -20-70 | |||
| Material of body | Aluminum alloy | |||
| Lubrication | Not required | |||
| Max.frequency | 4 cycle/sec | 3 cycle/sec | 4 cycle/sec | 3 cycle/sec |
| Weight | 4V310-08:310g 4V320-08:400g | 450g | 4V310-10:310g 4V320-10:400g | 450g |
