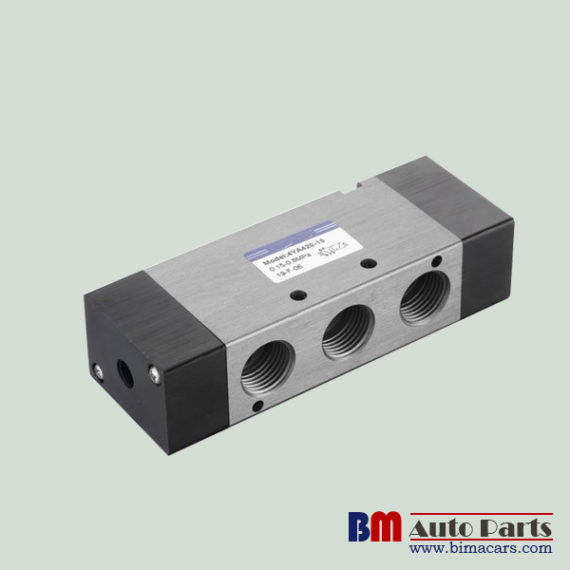

4A430p-15 Aluminum Alloy Solenoid Valve
The single electric control valve switches when the electric signal is turned on, resets after the electric signal disappears, and has no memory function. The double electric control valve has a memory function, that is, when the electric signal of the valve’s reversing action disappears, the valve remains in the original position, and the valve is reversed only when the other side’s electric signal is turned on.
Product feature for 4A430p-15 Aluminum Alloy solenoid valve
1. Structure is sliding column mode: good tightness and sensitive reaction.
2. Three position solenoid valves have three kinds of central function for your choice.
3. Double control solenoid valves have memory function.
4. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
5. No need to add oil for lubrication.
6. Integrate with the manifold to save installation space.
| Type | 4A430P-15 |
| Working Medium | Air (to be filtered by 40μm filter element) |
| Action | Exterior control |
| Port Size | In=out=exhaust=1/2 |
| Orifice Size | 30.0mm2 (CV=1.68) |
| Valve Type | 5 port 3 position |
| Operating Pressure | 0.15-0.8MPa(21-114Psi) |
| Proof Pressure | 1.5MPa(215Psi) |
| Temperature | -20~70℃ |
| Material of Body | Aluminum Alloy |
| Lubrication | Not required |
| Max. Frequency | 3Cycle/sec |
| Weight | 735G |
1. PT thread, NPT thread and G thread are available.
2. Once lubricated air is used, continue with same medium to optimise valve life span. Lubricants like ISO VG32 or equivalent are recommended.
3. The maximum actuation frequency is in the no-load state.
