Technical Specs
P/N: 8210G003B Key Specs

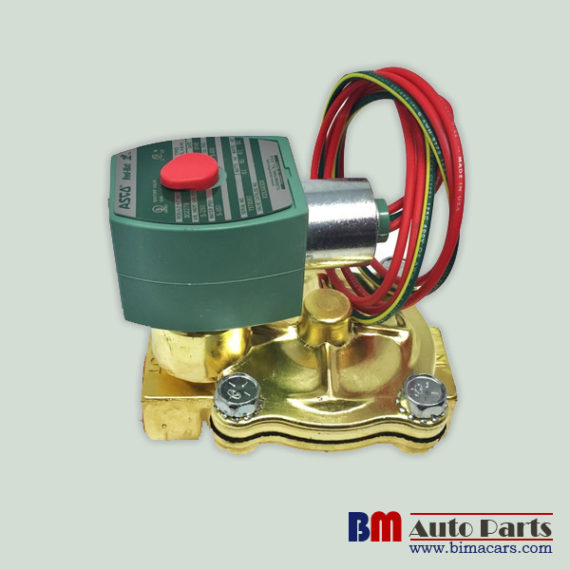

ItemSOLENOID VALVE BRASS NC AIR INERT GAS
OEMRed-Hat
OEM #8210G003B
ConditionNew OEM Original
ReturnableNo
ApplicationAir Compressors, Car Wash, Industrial Water Control, Laundry Equipment, Pumps
Body Material – ValvesBrass
Center Line Pipe Center Size3-9/16 in
Coefficient of Volume6.5
Coil EnclosureWatertight No Junction Box
Coil Insulation ClassF
Electrical Connections1/2 in Conduit w/18 in Leads
Environmental Rating – ValvesIndoor, Outdoor
Hz50/60
IP Rating66
Max Fluid Temperature180 Degrees F
Max Operating Pressure Differential Air/Inert Gas250 psi
Max Operating Pressure Differential Light Oil100 psi
Max Operating Pressure Differential Water150 psi
Media – ValvesAir, Inert Gases, Light Oil, Water
Min Operating Pressure Differential5 psi
NEMA Rating1, 2, 3, 3S, 4, 4X
Orifice Diameter3/4 in
Overall Height4-3/8 in
Overall Length3-7/16 in
Overall Width2-3/4 in
Pipe Size – Valves3/4 in
Seal Material – ValvesNBR
Solenoid Valve Product GroupSolenoid Valve
Valve ConfigurationNormally Closed
Valve Ways and Positions2-Way/2-Position
Voltage120V AC
Watts6.1 W
