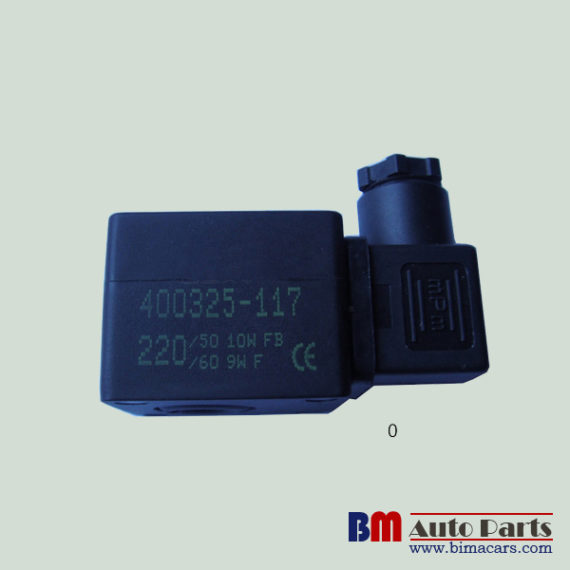

ASCO 400325-117 220VAC 50/60 Hz Pulse jet valve SCG353A043 SCG353A044 Solenoid Coil

Suitable for

All integrally piloted ASCO dust collector diaphragm valves, SCG353A043, SCG353A044.

Operation

Recommended on time range: 50-500ms

Recommended time between pulses: 1 minute or greater

Operating Voltage

1.All coils are designed to operate at 15% or 10% below the nominal voltage (Un) and at 10% above the

nominal voltage (Un).[Applicable standards: IEC 335, EN 60730- 1, UL 429]

2. The coils are rated for continuous duty within the maximum ambient temperature limits (100% ED).

Approvals

• C-Tick

• EMC (89/336/CE)

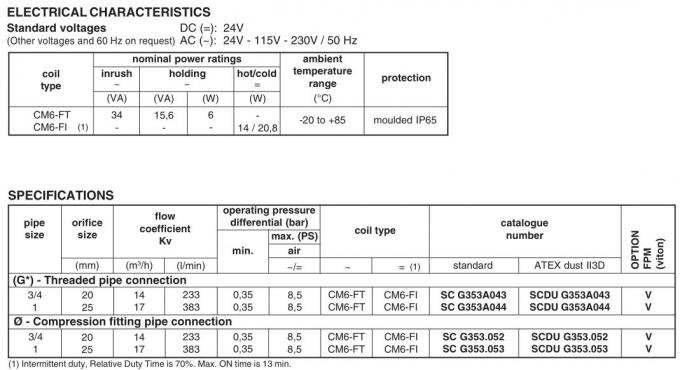

Order Code and Electrical Characteristics
