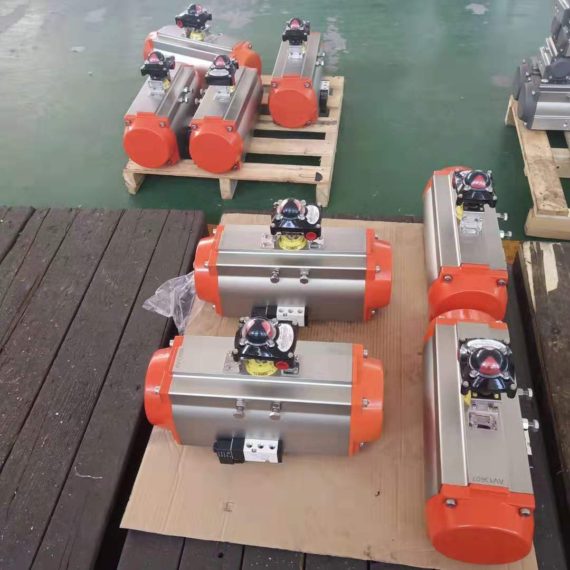

AT Series Double Acting Actuator

Pneumatic actuators can utilize a cylinder, diaphragm, or rotary vane design. Compressed air acts upon a piston or paddle to move it in one direction.

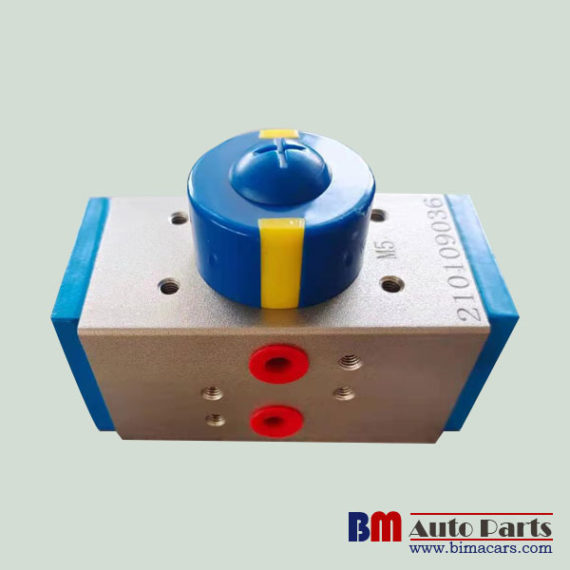

AT Series AT-75 Double Acting Air Pneumatic Rotary Actuator

AT series autuators which compact design,long life service,high quality,gear and gear rack.

This product is used for 90°ratationlly valves,such as:ball valves,butterfly valves,plug valves etc.My company put quality as the first task,adopts the most advance production and technology,stronger than similar product on both product quality and performance.

At series air operated actuator is the design is compact,the life is long,the quality is high,rack,s-like air operated actuator.

Lubrication:All the kinetic components are coated with lubricants,make it have a long service life.

Model
Air Pressure
Operating Temp.(Celsuis)
Rotate Angle
Life Time
AT-32
Max Working Pressure:
10bar
Double  acting:
2.5bar~8bar
Single  acting:
4.5bar~8bar
Standard:
-20~80
Option:
-35~80/
-20~150
90°+-5%
one million time
AT-50
AT-63
AT-75
AT-88
AT-100
AT-125
AT-145
AT-160
AT-190
AT-240
AT-270

Pneumatic Actuators
Pneumatic actuators can utilize a cylinder, diaphragm, or rotary vane design. Compressed air acts upon a piston or paddle to move it in one direction. A counterforce, consisting of a spring or a second volume of compressed air, is applied to the opposite side of the piston or paddle to reverse or maintain position. For industrial control, a pneumatic actuator requires positioning electronics, and an instrument air system. Of the three types of actuators, pneumatics tend to have the lowest initial price. However, operating costs are high due to the need to generate clean, dry, compressed air. Maintenance requirements are also the highest of the three actuator types.
