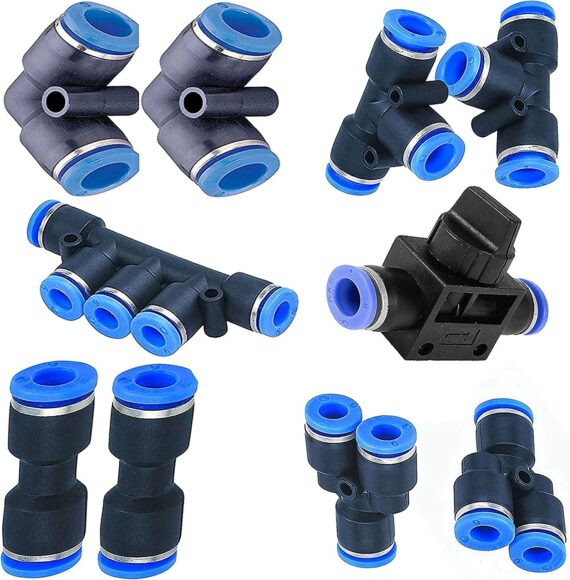

one touch plastic pneumatic fittings,6mm m8 x 1/4″ push to connect push-in air tube pipe fitting
Type | Pneumatic air hose fittings/ One touch hose connector | |||
Operating Pressure | 0-1.0MPa | 0-150psi | |||
Operating Temperature | 0 – 60 °C | |||
Male Thread Size | 1/8″ BSP thread———Thread Outside Diameter: 9.728mm 1/4″ BSP thread———Thread Outside Diameter: 13.157mm 3/8″ BSP thread———Thread Outside Diameter: 16.662mm 1/2″ BSP thread———Thread Outside Diameter: 20.955mm 3/4″ BSP thread———Thread Outside Diameter: 26.441mm 1″ BSP thread———–Thread Outside Diameter: 33.249mm | |||
Apply For | 4/6/8/10/12/14/16mm tube/hose | |||
Applicable Tube | PU / PA / PE / PVC | |||
Features | 1. Designed for Polyurethane or Nylon tubing. 2. Simple installation pneumatic push in connector. 3. After installation, the direction of the tube can be changed freely. 4. Elliptical release ring help to connect tube easily by manual, no special tools required. 5. Outside (and Inside where applicable) hexagonal wrench tightening. 6. This Quick fittings are only used for industrial automatic apparatus and can not be applied on any medicinal equipment. | |||
Note | 1.Due to the difference between different monitors, the picture may not reflect the actual color of the item. 2.Pay attention to the column of size and color, you could find a variety of product types and quantities for your choice,the more your purchase the best price you get. Thank you! | |||
