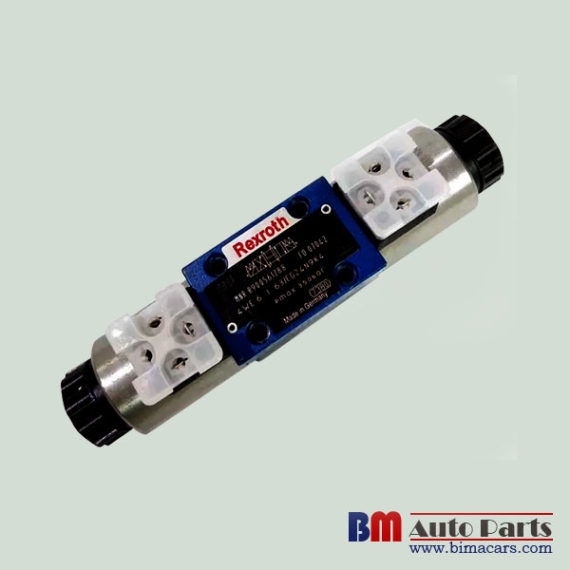

Rexroth 4we6d61 4wree Series Multi-way Directional Direct Operated Hydraulic Valve Solenoid Control Valve
| Size | 6 | ||
| Weight | Valve with one solenoid | kg | 1.45 |
| Valve with two solenoids | kg | 1.95 | |
| Installation position | any | ||
| Ambient temperature range | NBR seals | °C | -20 … +50 |
| FKM seals | °C | -15 … +50 | |
| Version for HFC hydraulic fluid | °C | -20 … +50 | |
| Low-temperature version 1) | °C | -40 … +50 | |
| Storage temperature range | °C | +5 … +40 | |
| MTTFD values according to EN ISO 13849 2) | Years | 300 | |
Features:
- 4/3-, 4/2- or 3/2-way version
- Porting pattern according to ISO 4401-03-02-0-05 (with or without locating hole)
- High-power solenoid, optionally rotatable by 90°
- Electric connection as single or central connection
- Optional auxiliary operating device
- Spool position monitoring, optional
- CE conformity according to the Low-Voltage Directive 2014/35/EU for electrical voltages >50 VAC or >75VDC
- Solenoid coil as approved component with UR marking according to UL 906, edition 1982, optional
- Approval according to CSA C22.2 no. 139-1982, optional
