| Model: | PM60 | Operation: | Normally Closed |
|---|---|---|---|
| Valve Body: | Die-Cast Aluminum | Fluid Temperature: | 110°C Max |
| Media: | Air Or Insert Gas | Mounting: | Manifold |
| Max.Operating Pressure: | 7.5kg F/cm³ | Fitted Valve Code: | All The Type |
| High Light: | PM60 Solenoid Valve Coil, Taeha Solenoid Valve Coil, TH-4825-B Solenoid Valve Coil | ||

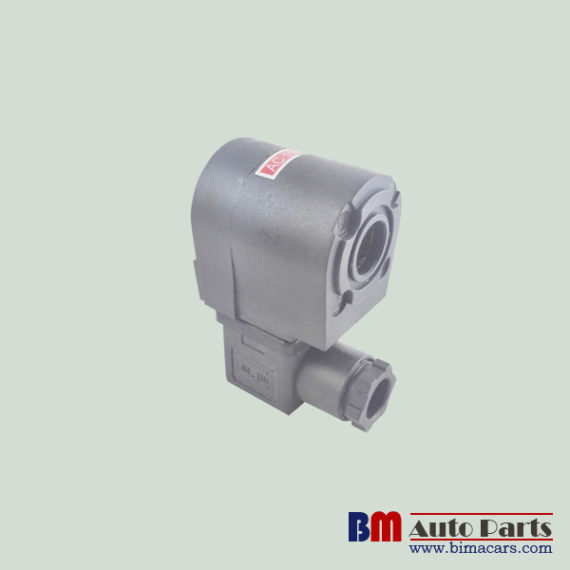

Taeha PM60 Pulse Jet Valves Solenoid coil TH-4820-B TH-4820-C TH-4825-B
| Operation | Normally Closed |
| Cv Flow Factor | 142 |
| Valve Body | Die-cast Aluminum |
| Diaphragm Seat | NBR |
| Media | Air or Inert Gas |
| Fluid Temperature | 110℃ Max |
| Amblent Temperature | 100℃ Max |
| Disk Material | Elastomer |
| Pilot Air | Double |
| Mounting | Screw Type |
| Design Pressure | 7.5kg f/cm³ |
| Max. Operating Pressure | 7.5kg f/cm³ |
| Approx.Weitht | 3.82kg |

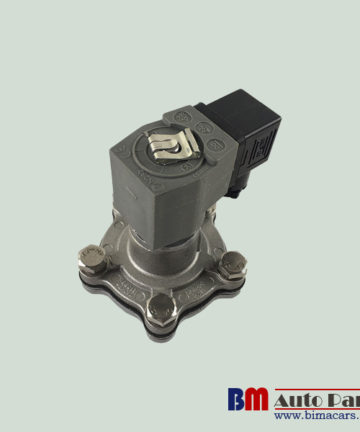

Aluminum die-casted valves are high flow diaphragm operated valves specially designe for air pulse
type dust collectors.
High flow, long life and its fast opening combine to offer a supperior design for the dust collector system
available for remote pilot valve operation with the solenoid enclosure or the integral solenoid pilot opera-
tion.
For the connection, We offer the screw, coupling and flange type valve. Viton diaphragms are offered for
the high temperature applications.
Competitive Advantage :
| Our product features | Our Services Guarantee |
| 1) Good quality | 1) Free Samples (Customer pay for the delivery cost) |
| 2) Produce according to Customers’ instruction | 2) Registration support |
| 3) Competitive price | 3) Prompt respond (Reply with 24 hours) |
| 4) Professional Packaging | 4) Photos/videos are available during production |
| 5) None delay shipment | 5) Loading inspection , and send loading photos before shipment |
