Applications
- Chemical, petrochemical, natural gas, offshore industries
- Shipbuilding, machine building
- Power generating equipment, power plants
- Pharmaceutical, food and beverage industries, process water and drinking water treatment
Special features
- Process- and procedure-specific production
- Operating limits:
– Operating temperature: T = -60 … +300 °C
– Operating pressure: P = Vacuum to 40 bar - Wide variety of different process connections
- Mounting of level sensors and magnetic switches possible as an option
- Explosion-protected versions
Description

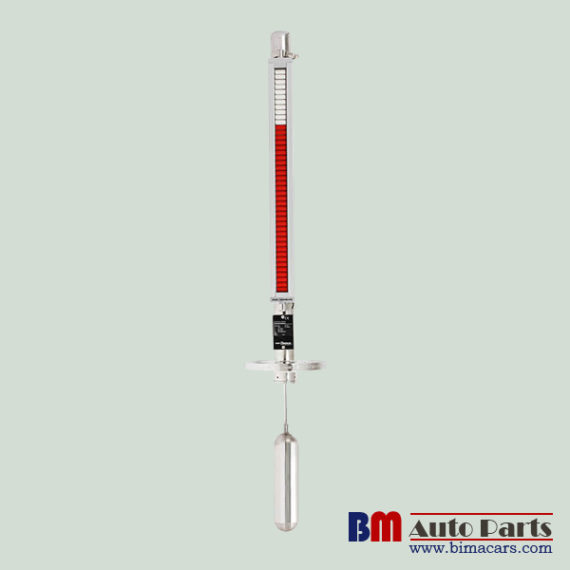

The model UTN top-mounted level indicator consists of a measuring chamber, a float with guide rod and a magnetic system. Mounting onto the vessel is made via appropriate process connections (flange, thread).
The permanent magnetic system, which is connected to the float via a guide rod, transmits the liquid level measured in the vessel by the float, contact-free, to the magnetic display mounted to the outside of the measuring chamber.
In this magnetic display there are red/white plastic rollers or stainless steel flaps with bar magnets fitted at 10 mm intervals. The magnetic rollers or flaps are turned 180° through the walls of the measuring chamber. For an increasing level from white to red; for a falling level from red to white. Thus the magnetic display indicates the level of a vessel as a red column, without power supply.
